900H

900H – SNOWMAKING MARKET TRANSFORMATION

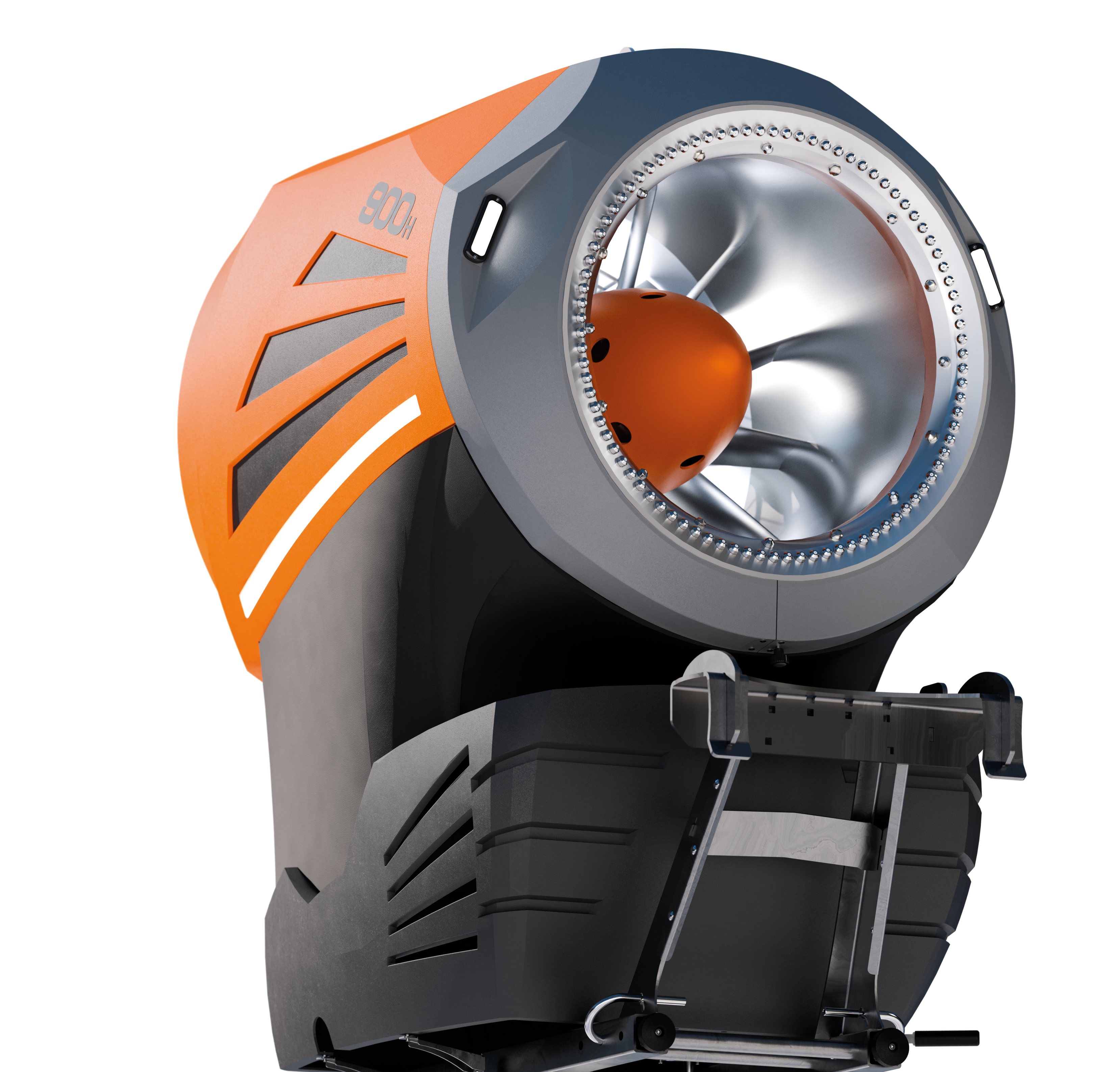

900H is the latest snow gun that joined the whole array of SUPERSNOW’s machines. The engineers of the Innovation Department have designed a highly efficient and reliable machine that takes advantage of favorable weather windows until the very last minute, producing top-quality snow. It is the mobile version of the already proven next-generation SUPERSNOW snow gun – the 900T.

Ceramic TwinC® SUPERSNOW nozzle

The abrasion-resistant, ceramic TwinC® SUPERSNOW nozzles significantly increase the snow gun’s performance. This is possible thanks to the innovative ceramic insert, which is characterized by high resistance to abrasion caused by the flow of water contaminated with sand particles and other precipitates that the filter will not collect. The ceramic insert allows the proper flow of water, which guarantees the maintenance of the correct angle of its atomization and ensures optimal droplet size for years. The incredible ease of nozzle installation and removal means that maintenance requires minimal work.

Nucleation system

The basic components of the nucleation system are dualmedianucleation nozzles equipped with an individual water filtration system. The new design of the nucleation nozzle makes it possible to significantly reduce the volume of air required for atomization of water in the nucleation system.

An additional benefit is that the air pressure in the nucleation system can be lowered by about 2 bars, which has a positive effect on the temperature of the compressed air and lowers noise emissions from the nucleation nozzles.

The new design of the nucleation nozzle allows the use of a much smaller air compressor, which has a much lower noise level and significantly lower energy consumption.

Air cooling system in the water-air ring

The air from the compressor is cooled as it passes through a heat exchanger built into the water-air ring. This solution significantly increases the efficiency of the nucleation system, with remarkable results, especially at marginal temperatures.

New fan impeller

The fan design is a continuation of the design developed for the 700 series guns. The blade design and the aluminum rotor with a spherical hub shape result in an increase in the efficiency of the fan system and a reduction in noise compared to the earlier, already highly efficient version used in the 900A.

New ring and valve train design

The solution developed by SUPERSNOW’s engineering team eliminates the need for water discharge through the drain valves during machine operation. Water discharge occurs only when the machine is started and stopped. At other times, excess water is blown out with compressed air through water nozzles and turned into snow.

Number of water sections	5
Number of nucleation rings	1
Number of water nozzles	98
Number of nucleator nozzles	8
Max. water flow	11,08 l/s
Max. water consumption	665 l/min
Max. snow production	115 m3/h
Range of produced snow density	330-870 kg/m3
Number of snow quality levels	7
Horizontal rotation	360°
Tube tilt angle	0°-45°

Weight without chassis	817 kg
Width	1250 mm
Height	4392 mm
Length	1519 mm

Max. power consumption	21,15 kW
Water ring heating	1,5 kW*
Oil-free compressor	4 kW
Fan motor	15 kW
Other components	0,65 kW

*average value of power consumption, maximum value in extreme conditions: 2.75 kW

2x LED work lights, 12/24 V, 19 W

LED warning light

Oil-free compressor 4 kW

Angled rotary connector with horizontal inlet with 2” female camlock

Rubber water hose for mobile snow gun, 1.9 m

Power cable 4×10 mm², 5-pin plug, 63 A, 22 m

Hydrant drive cable, 22 m

Operator panel cable

Operator panel

SUPERWIRE or SUPERWAVE communication

DV7 hydrant drive

DV7 dedicated hydrant drive mount

SNOWFLEX hose with 2” camlock ends, 20 m

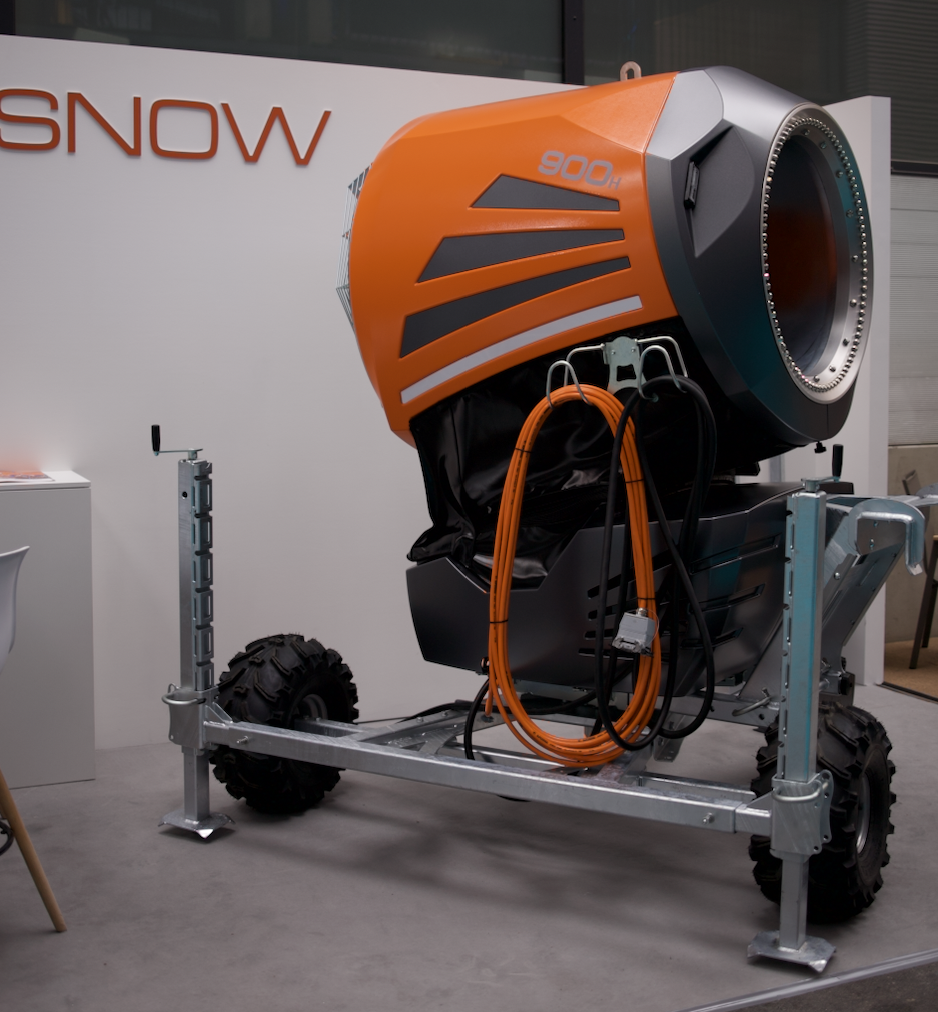

Legged or wheeled chassis
